Sheet metal fabrication is the most cost-effective choice for custom sheet metal parts and prototypes with uniform wall thickness. MXP provides various sheet metal capabilities, from high-quality cutting, punching, and bending, to welding services.

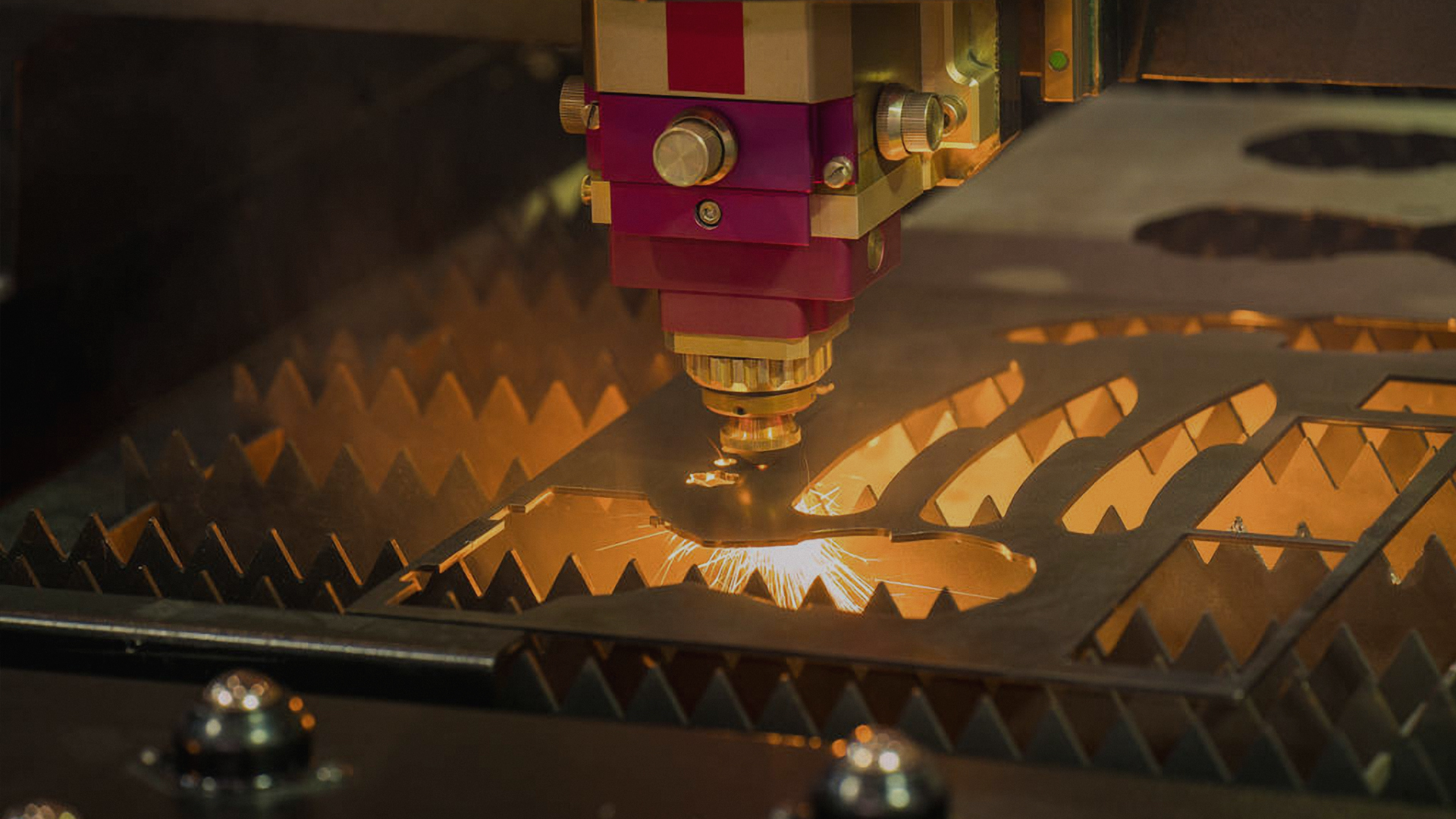

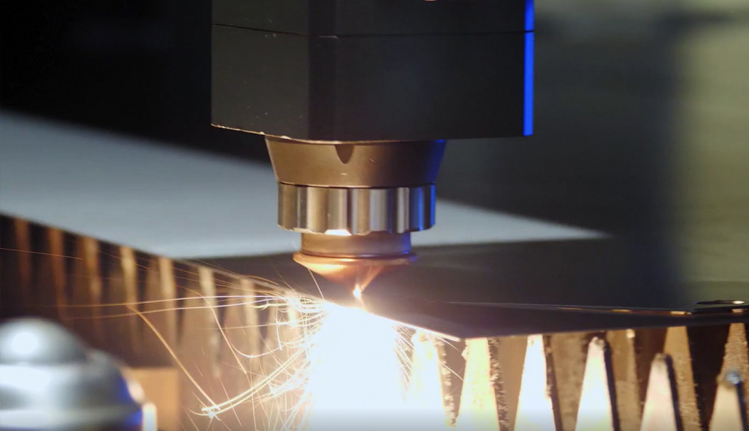

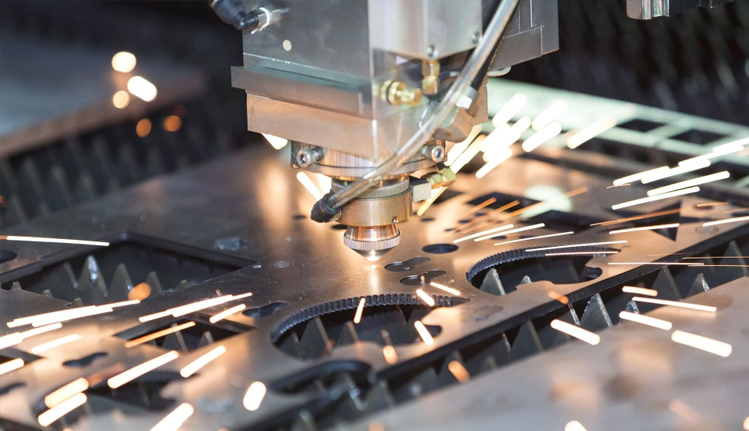

Laser Cutting
Intense lasers cut through 0.5mm to 20mm thick sheet metals to create high-grade prototype sheets for various parts.
Plasma Cutting
CNC plasma cutting is widely used in custom sheet metal services, it is especially suitable for custom cutting of thicker sheet metals.

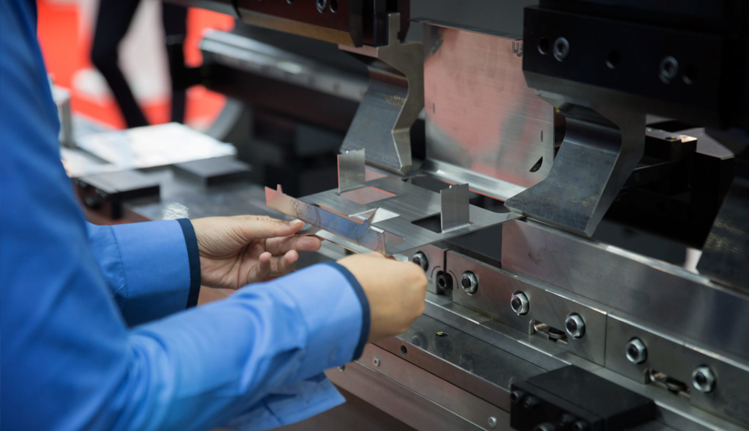

Bending
Sheet metal bending is used to shape steel, stainless steel, aluminum parts and custom sheet metal prototypes after the cutting process.
Sheet Metal Fabrication From Prototyping to Production
MXP’s custom sheet metal fabrication services can be used for various applications such as mold tooling, rapid prototyping, and custom manufacturing, and more.
Functional Prototype
Custom metal fabrication can be formed into 2D shaped profiles from various metals,creating functional molds for specific parts.
Rapid Prototyping
MXP can produce sheet metal prototyping from sheet metal within a short time and at a low cost.
On-Demand Production
From rich selections of materials to sheet metal parts manufacturing and assemblies, to flexible delivery, we provide end-to-end high-volume production solutions.
Sheet Metal Fabrication Standards
To ensure part manufacturability and precision of fabricated prototypes and parts, our custom sheet metal fabrication services are in compliance with the ISO 2768-m.
Dimension Detail | Metric Units | Imperial Units |
Edge to edge, single surface | +/- 0.127 mm | +/- 0.005 in. |
Edge to hole, single surface | +/- 0.127 mm | +/- 0.005 in. |
Hole to hole, single surface | +/- 0.127 mm | +/- 0.005 in. |
| Bend to edge / hole, single surface | +/- 0.254 mm | +/- 0.010 in. |
Edge to feature, multiple surface | +/- 0.762 mm | +/- 0.030 in. |
Over formed part, multiple surface | +/- 0.762 mm | +/- 0.030 in. |
Bend angle | +/- 1° | |
By default, sharp edges will be broken and deburred. For any critical edges that must be left sharp, please note and specify them in your drawing.
Finishing Options for Sheet Metal Fabrication
Choose from a wide variety of finishing options that alter the surface of sheet metal fabricated parts and products to improve their corrosion resistance, enhance cosmetic appearance, and decrease cleaning time.
|
Name |
Description | Materials | Color | Texture | Link | |
 |
Anodizing | Anodizing improves corrosion resistance, enhancing wear resistance and hardness, and protecting the metal surface. Widely used in mechanical parts, aircraft, and automobile parts, precision instruments, etc. | Aluminum | Clear, black, grey, red, blue, gold. | Smooth, matte finish. | Learn More>> |
 |
Bead Blasting | Bead blasting results in parts with a smooth surface with a matte texture. Used mainly for visual applications and can be followed by other surface treatments. | ABS, Aluminum, Brass, Stainless Steel, Steel | n/a | Matte | Learn More>> |
 |
Powder Coating | Powder coating is a type of coating that is applied as a free-flowing, dry powder. Unlike conventional liquid paint which is delivered via an evaporating solvent, powder coating is typically applied electrostatically and then cured under heat or with ultraviolet light. | Aluminum, Stainless Steel, Steel | Black, any RAL code or Pantone number | Gloss or semi-gloss | Learn More>> |
 |
Electroplating | Electroplating can be functional, decorative or corrosion-related. Many industries use the process, including the automotive sector, in which chrome-plating of steel automobile parts is common. | Aluminum, steel, stainless steel | n/a | Smooth, glossy finish | Learn More>> |
 |
Polishing | Polishing is the process of creating a smooth and shiny surface, either through physical rubbing of the part or by chemical interference. The process produces a surface with significant specular reflection, but in some materials is able to reduce diffuse reflection. | Aluminum, Brass, Stainless Steel, Steel | n/a | Glossy | Learn More>> |
 |
Brushing | Brushing is a surface treatment process in which abrasive belts are used to draw traces on the surface of a material, usually for aesthetic purposes. | ABS, Aluminum, Brass, Stainless Steel, Steel | n/a | satin | Learn More>> |
FREQUENTLY ASKED QUESTIONS
1
Q1: Are you trading company or factory?
We are a prototyping manufacturer for nearly 15 years. With 100 experienced staff and an 5,000 ㎡ factory, we provide high-quality prototyping industry and best solutions for your product needs
Q2: How to get a quote from you?
lt's quite simple. Please send us your CAD files and product detailsto this email address (vicky@mxp-ft.com) and we'll sendyou a free quotation within 12 hours.
Q3: What is your MOQ?
From 1pcs/style, welcome to contact for more details.
Q4: How long is your delivery?
Normally, it takes 3 to 4 work days. And surely it depends on different requirements and orders on the queue
Q5: What is your terms of payment?
T/T Payment bank to bank, 40% deposit and 60% balance before shipping
Q6:What is your trade term?
EXW/FOB Shenzhen/HK
