Vacuum Casting
Vacuum Casting
10s
Instant Quotes
1 day
Instant Quotes
0 pc
Instant Quotes
0.010 mm
Tolerances
Vacuum Casting for Flexible and Economic Production
Why Vacuum Casting
Unmatched Lead Time
We combine our extensive technical experiences and advanced technologies to deliver superior urethane casting services with faster lead times.
Complex Geometries Support
We use high-quality elastomeric materials to ensure the manufacture of vacuum casting plastic parts with complex structures. Offer detailed design support to ensure your prototypes and small-batch components are closely similar to the intended final products.
Flexible Color Options
We carefully incorporate various color pigments to achieve the intended effects on your finished products. You can select from our extensive list of color options.
Material and Finishing Selection
Choose from a wide range of possible materials and surface finishes for your vacuum cast parts. We provide the highest quality resins to ensure superior product quality, and offer a wide range of surface finishing options to bring your product to life.
Consistent Quality
MXP is proudly ISO certified, ensuring our products and services comply with international quality standards. We offer manufacturing analysis and quality control to provide parts that meet the highest standards.
Professional Vacuum Casting Specialists
Get reliable custom vacuum casting services from highly skilled and experienced specialists. We boast the best hands in the industry with expertise in fabrication, material selection, surface finishing, and many more.
Vacuum Casting from Prototyping to Production
Vacuum casting is the ideal solution for creating high-quality prototypes and small-batch parts for different applications. We help you reach your manufacturing goals.
Prototyping
The vacuum casting process involves low-cost tooling to ensure a more accessible and cost-effective way of creating prototypes. Create quality prototypes with various materials and design changes. Test your designs easily and get them ready for functional testing.
Market Testing
We help you create vacuum casting products ideal for market and consumer testing, concept models, and user evaluation. These parts come with high-quality finishes and end-use functionalities. Our urethane casting services allow you to incorporate changes quickly for further testing and market launch.
On-Demand Production
Vacuum cast parts are excellent options for custom and first-run production. You can cost-effectively test product quality before starting full-scale production.
Vacuum Casting Tolerances
MXP offers a range of vacuum casting tolerances to meet your custom requirements. Based on the master pattern and part geometry, we can reach dimensional tolerances between 0.2 – 0.4 m. Below are the technical specifications for our vacuum casting services.
Type | Information |
Accuracy | Highest precision to reach ±0.05 mm |
Max Part Size | +/- 0.025 mm +/- 0.001 inch |
Minimum wall thickness | 1.5mm～2.5mm |
| Quantities | 20-25 copies per mold |
Color & Finishing | Color and texture can be customized |
Typical Lead Time | Up to 20 parts in 15 days or less |
Surface Finish for Vacuum Casted Parts
With an extensive array of surface finishes, MXP can create unique surface layers for your vacuum casting parts. These finishes help you meet your products’ appearance, hardness, and chemical resistance requirements. Depending on your material selection and part applications, we can offer the following surface finishes:
|
Available Finishing |
Description | SPI Standard | Link | |
 |

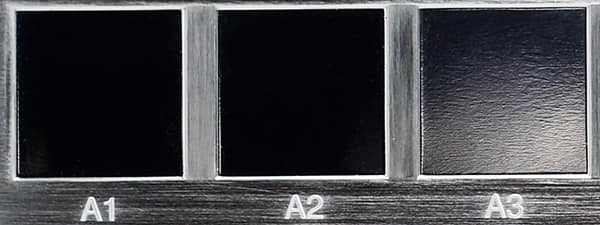

High Gloss | Highly reflective surface finish created by polishing the master pattern before mold making. The high-gloss finish offers high transparency useful for cosmetic parts, lenses, and other cleanable surfaces. | A1, A2, A3 | Learn More>> |
 |

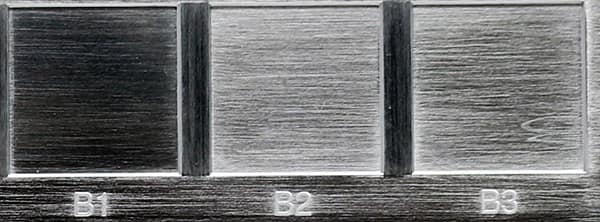

Semi Gloss | This B grade finish is not highly reflective but offers some sheen. Using gritty sandpaper, you will get smooth, cleanable surfaces between high-gloss and matte. | B1, B2, B3 | Learn More>> |
 |

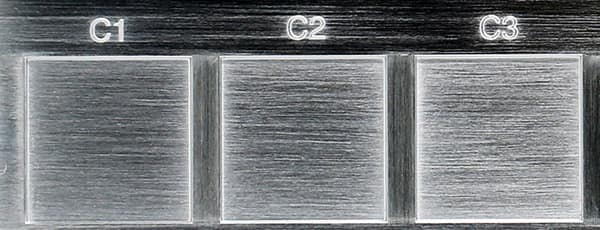

Matte Finish | Vacuum cast parts will have a satin-like finish through the bead or sand blasting of the master pattern. The C-grade finishes are ideal for high-touch areas and handheld components. | C1, C2, C3 | Learn More>> |
 |

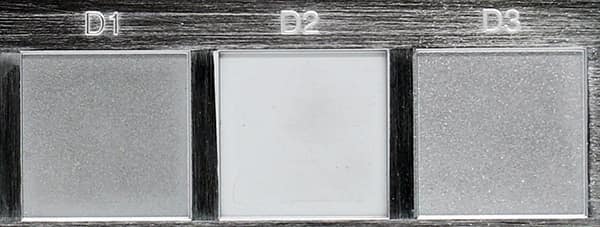

Custom | RapidDirect can also provide custom finishes through additional processes. On request, you can get unique secondary finishes for the best results. | D1, D2, D3 | Learn More>> |
FREQUENTLY ASKED QUESTIONS
1
Q1: Are you trading company or factory?
We are a prototyping manufacturer for nearly 15 years. With 100 experienced staff and an 5,000 ㎡ factory, we provide high-quality prototyping industry and best solutions for your product needs
Q2: How to get a quote from you?
lt's quite simple. Please send us your CAD files and product detailsto this email address (vicky@mxp-ft.com) and we'll sendyou a free quotation within 12 hours.
Q3: What is your MOQ?
From 1pcs/style, welcome to contact for more details.
Q4: How long is your delivery?
Normally, it takes 3 to 4 work days. And surely it depends on different requirements and orders on the queue
Q5: What is your terms of payment?
T/T Payment bank to bank, 40% deposit and 60% balance before shipping
Q6:What is your trade term?
EXW/FOB Shenzhen/HK
